2core Single Mode Fiber Optic Cable SC UPC ST UPC 55dB Return Loss

  • 1
  • 2
  • 3

Brand Name : Factory Supplying OEM/ODM

Model Number : SC/UPC~ST/UPC OS2(9/125µm)

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : US$1.88/pcs (3M, ≤0.3DB)

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 80000Pieces per Day

Delivery Time : 3-5 days

Packaging Details : Standard Packing

Model : SC/UPC~ST/UPC

Mode/Cores : Single-mode/ Dual core

Length : 1M-100M Customizable

OEM/ODM : YES

Shipping : TNT,DHL,UPS,FEDEX Or EMS

Product Name : Optical fiber jumper

Contact Now

Customizable SC/UPC~ST/UPC OS2(9/125µm) Singlemode 2core Optic fiber jumper carrier-grade fiber optic cable for LAN CATV

Description:

Good quality "head": the Optical fiber connector adopts ABS/PBT environmentallly friendly plastic parts, metal parts such as aluminum oxide and oxygen-free copper/stainless steel/zinc alloy.

Good Quality "core": the Optical fiber jumper adopts the core of major brands such as Coring, YOFC and Fiberhome.

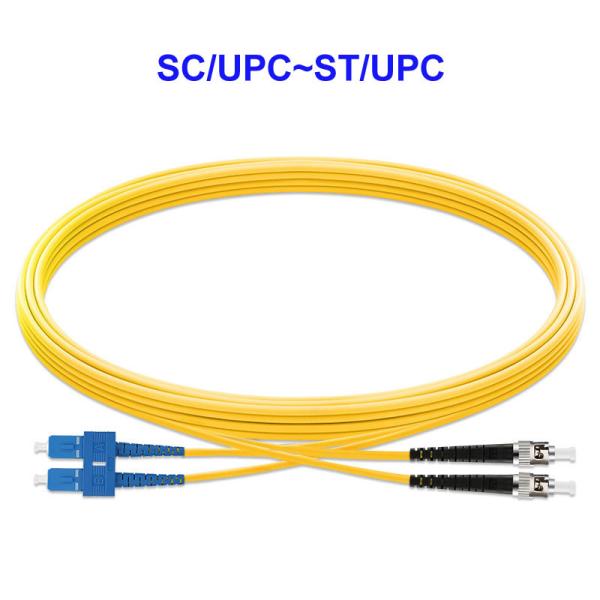

Product Picture:

2core Single Mode Fiber Optic Cable SC UPC ST UPC 55dB Return Loss

Quick Specs:

Prodcuct Parameters
Interface model:SC/UPC~ST/UPC Mode:Single-mode
Insertion loss:≤0.3dB Number of cores:DX
Return loss:≥55dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40℃to +85℃
Repeatability:≤0.1dB Fiber type:OS2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:1310nm~1550nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default),3.0mm
Minimum bending radius:38mm Optical fiber specifications:9/125µm

Product Profile:

2core Single Mode Fiber Optic Cable SC UPC ST UPC 55dB Return Loss

Offer OEM/ODM Service:

Offer OEM/ODM Service
2core Single Mode Fiber Optic Cable SC UPC ST UPC 55dB Return Loss
1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...

Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25℃to +70℃ 2cycles <0.2dB <0.2dB
High temperature test +80℃,2hours
Low temperature test -40℃,2hours
Warm test +40℃90~95%RH,2hours

2core Single Mode Fiber Optic Cable SC UPC ST UPC 55dB Return Loss

Applications:

Suitable for fiber-optic communication systems, Fiber-to-the-home, fiber optic data transmission, CATV, LAN, Optical test equipment.

2core Single Mode Fiber Optic Cable SC UPC ST UPC 55dB Return Loss

Product connector introduction:

2core Single Mode Fiber Optic Cable SC UPC ST UPC 55dB Return Loss

Common Connectors:

2core Single Mode Fiber Optic Cable SC UPC ST UPC 55dB Return Loss

About US:

1. Brand new.
2. OEM/ODM is available.
3. High-quality 100% through quality test and aging test.
4. Factory Supplying, Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.

2core Single Mode Fiber Optic Cable SC UPC ST UPC 55dB Return Loss
