Dual Core Single Mode Fiber Optical Pigtail SC APC SC APC For Network

Product Categories

WanyYi Telecom Tech Co.,Limited

Contact Now

Model Number : SC/APC~SC/APC

Place of Origin : China

MOQ : 1pcs

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 3-5days

Packaging Details : Standard Packing

Part number : SC/APC~SC/APC

Mode : single-mode

Number of cores : 2

Insertion loss : ≤0.3dB

Return loss : ≥55dB

Fiber type : OS2

Outer sheath material : PVC(default),LSZH,OFNP

Test wavelength : 1310nm~1550nm

Contact Now

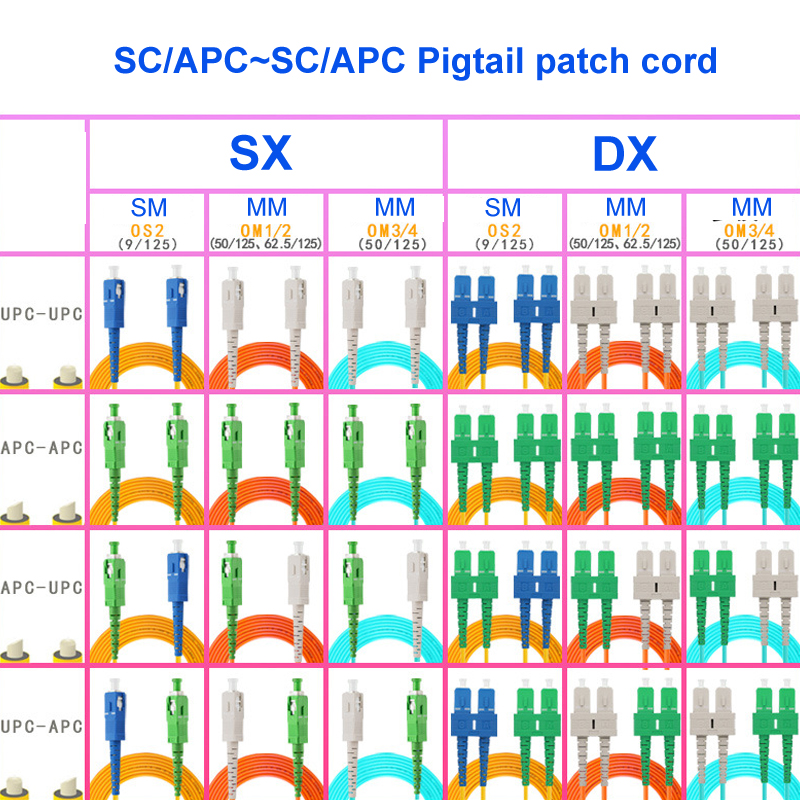

Optical Fiber Patch Cord SC/APC~SC/APC Single-Mode Dual-Core OS2 Pigtail

Dual Core Single Mode Fiber Optical Pigtail SC APC SC APC For Network

Prodcuct Parameters
Interface model:SC/APC~SC/APC	Mode:single-mode
Insertion loss:≤0.3dB	Number of cores:DX
Return loss:≥55dB	Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB	Operating temperature:'-40℃to +85℃
Repeatability:≤0.1dB	Fiber type:OS2
Tensile strength:45KG	Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N	Test wavelength:1310nm~1550nm
Mating times:≥1000times	Cable outer length:0.9mm,2.0mm(default)3.0mm
Minimum bending radius:38mm	Optical fiber specifications:9/125µm

Item			Test Conditions	SM	MM
Optical properties	Insertion loss	upc	SM:1310-1550nm	≤0.2dB	≤0.3dB
			MM:850-1300nm
		apc	1310-1550nm	≤0.3dB
	Return loss	upc	SM:1310-1550nm	≥55dB	≥35dB
			MM:850-1300nm
		apc	1310-1550nm	≥65dB
Mechanical properties	Impact test		Height 1.8,8times	<0.1dB	<0.1dB
	Vibration test		10~60HZ,1mmFull amplitude
	Plug life		≥1000times
	tensile strength		>100N
	Pressure test		45kg
Environmental characteristics	High and low temperature cycle test		-25℃to +70℃ 2cycles	<0.2dB	<0.2dB
	High temperature test		+80℃,2hours
	Low temperature test		-40℃,2hours
	Warm test		+40℃90~95%RH,2hours

Dual Core Single Mode Fiber Optical Pigtail SC APC SC APC For Network
